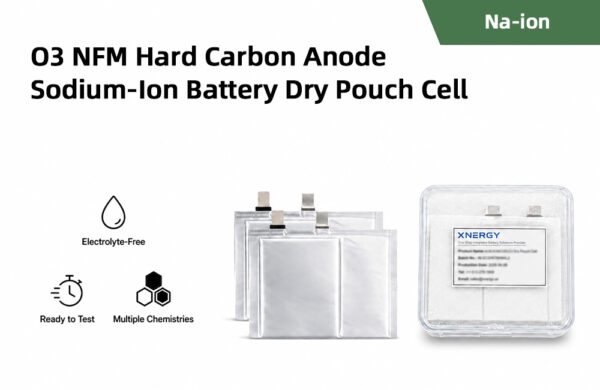

O3 NFM hard carbon anode sodium-ion battery dry pouch cell

O3 NFM Hard Carbon Anode Sodium-Ion Battery Dry Pouch Cell

SKU: XN-O3NFM

Free Shipping Price range: $198.00 through $268.00

O3 NFM Hard Carbon Anode Sodium-Ion Battery Dry Pouch Cell is available in 1 Ah and 2 Ah electrolyte-free dry pouch cell options with an O3 NFM cathode and hard-carbon anode. The published technical data below apply to the confirmed 2 Ah version.

Need a bulk order or custom specification? Request a competitive quote today!

Name: O3 NFM Hard Carbon Anode Sodium-Ion Battery Dry Pouch Cell
Product Type: Electrolyte-Free Sodium-Ion Dry Pouch Cell
Product Code: XN-O3NFM
Brand: Xnergy

Product Introduction:

This sodium-ion dry pouch cell is available in 1 Ah and 2 Ah options and combines an O3 NFM cathode with a hard-carbon anode. The electrolyte-free configuration gives laboratories control over electrolyte selection and formation conditions while using a defined cell structure for comparative electrochemical testing. The technical specifications currently published on this page apply only to the 2 Ah version.

Key Features:

O3 NFM cathode and hard-carbon anode chemistry
Electrolyte-free dry pouch cell format
Available in 1 Ah and 2 Ah capacity options
Confirmed 2 Ah version with 2000 mAh capacity
1.5–3.95 V operating range
Ceramic-coated PE separator
Defined electrode loading and plate count
Suitable for electrolyte screening and sodium-ion cell evaluation

2 Ah Model Technical Specifications:

Parameter Specification
Cell Format Electrolyte-free sodium-ion dry pouch cell
Cell Chemistry O3 NFM cathode / hard-carbon anode
Nominal Capacity Class 2 Ah (specifications shown below)
Capacity 2000 mAh
Cell Dimensions 60 × 90 mm
Voltage Range 1.5–3.95 V
Separator 9 μm PE + 3 μm ceramic
N/P Ratio 1.15
Number of Cathode Plates 14
Number of Anode Plates 15
Cathode Material O3 NFM
Cathode Active Material Content 95%
Cathode Specific Capacity 130 mAh/g
Cathode Compaction Density 2.6 g/cm³
Cathode Coating Areal Density 28.1 mg/cm²
Cathode Electrode Size 75 × 54 mm
Anode Material Hard carbon
Anode Active Material Content 93.7%
Anode Specific Capacity 280 mAh/g
Anode Compaction Density 0.9 g/cm³
Anode Coating Areal Density 15.2 mg/cm²
Anode Electrode Size 77 × 56 mm

Application Areas:

Sodium-ion electrolyte formulation screening
O3 NFM cathode performance evaluation
Hard-carbon anode benchmarking
Formation-protocol development
Laboratory dry pouch cell research

Note: The 1 Ah option is available, but its detailed parameters are not yet published on this page. The cell is supplied without electrolyte. Electrolyte filling, sealing, formation, and testing conditions must be established by the user for the intended research program. Browse the Na-ion dry pouch cell category for compatible sodium-ion research cells. Related products: P2 Layered Oxide Anode-Free Sodium-Ion Pouch Dry Cell (Multiple Specs), NFPP Anode-Free Dry Pouch Cell(Multiple Specs), Sodium Metal Single-Layer Pouch Battery Dry Pouch Cell (Unfilled)(Multiple Specs), NVP Anode-Free Pouch Dry Pouch Cell(Multiple Specs).

O3 NFM H-C

1 ah, 2 ah
