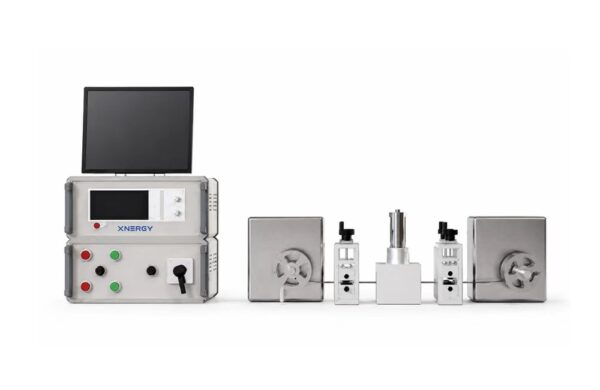

Roll-to-Roll Joule Heating Device XN-RJH-3020
SKU: XN-RJH-3020
Roll-to-Roll Joule Heating Device XN-RJH-3020 provides continuous Joule heating for fibers, narrow strips, and thin films up to 1000 mm wide. It supports temperatures up to 2000 °C, adjustable speeds of 3–30 mm/s, and ambient or vacuum processing.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Roll-to-Roll Joule Heating Device
Equipment Type: Roll-to-Roll Joule Heating Device
Product Code: XN-RJH-3020
Brand: Xnergy
Product Introduction:
The XN-RJH-3020 transfers current through a moving fiber, strip, or film so that the material generates resistive heat. Independent unwinding, heating, and rewinding modules support continuous thermal processing with adjustable tension, transport speed, temperature, and holding time.
The system supports ambient or vacuum operation, multiple infrared temperature-measurement ranges, continuous processing of material lengths above 1 m, and integration with compatible glovebox or controlled-atmosphere workflows.
Key Features:
Continuous roll-to-roll Joule heating
Material width from 5–1000 mm
Maximum temperature up to 2000 °C
Adjustable transport speed of 3–30 mm/s
Maximum heating rate of 1000 °C/s
Ambient or vacuum processing
Adjustable speed, temperature, and holding time
Motorized unwinding with tension sensing
Multiple infrared temperature-measurement ranges
Water or air chamber cooling
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | XN-RJH-3020 |
| Supported Materials | Fibers, narrow strips, and thin films |
| Material Width | 5–1000 mm; customizable |
| Process Temperature | 0–2000 °C; customizable |
| Unwinding/Rewinding Speed | 3–30 mm/s; customizable |
| System Layout | Separate unwinding and heating modules |
| Rated Power | 3.6 kW; customizable |
| Regulated DC Power Supply | 60 V / 60 A |
| Maximum Temperature | 2000 °C; customizable |
| Working Pressure | Ambient pressure or vacuum; customizable |
| Sample Heating Distance | 30–100 mm; customizable |
| Chamber Cooling | Water or air cooling |
| Automation | Adjustable transport speed, heating temperature, and holding time with automatic operation |
| Communication | Open communication interface for automatic linkage with compatible experimental chambers |
| Temperature Measurement | Infrared |
| Temperature Range Options | 80–800 °C, 100–2000 °C, 300–1800 °C, 700–2600 °C, or 1500–3200 °C |
| Temperature Accuracy | ±5% |
| Standard Configuration | Water-cooling system, motorized unwinder, and Joule heating chamber |
| Heating Carrier | High-purity isostatic graphite |
| Observation Windows | Front and top quartz windows; optional sapphire |
| Enclosure | Sheet-metal or aluminum-profile construction |
| Heating Modes | Staged heating, pulse discharge, linear heating, and linear voltage/current ramping; customizable |
| Maximum Heating Rate | 1000 °C/s |
| Continuous Material Length | Above 1 m |
| Power Supply | Configured according to applicable local electrical standards |
Applications:
Catalyst films
Graphene films
Solid-electrolyte films
MXene and other two-dimensional-material films
High-entropy-alloy nanoparticles
Continuous thermal treatment of fibers and strips
Note: Roll width, roll diameter, transport speed, heating chamber, atmosphere, and temperature range can be customized. Related equipment includes the Plasma Torch Heating Device XN-PLT, Plasma Heating Device XN-PLA, Joule Ultrafast Heating Quenching Device XN-JQT, High-Throughput Joule Heating Device XN-HTG, and Joule Ultrafast Heating System XN-HTS Series.
