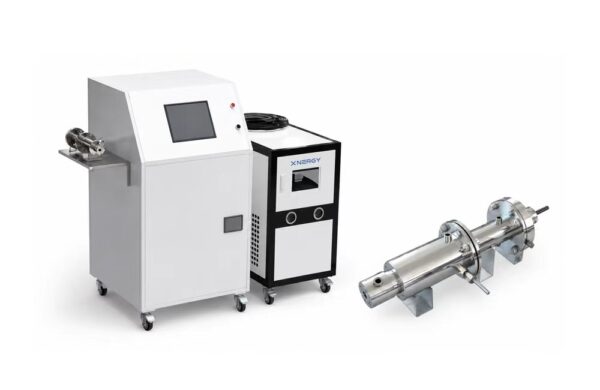

Plasma Torch Heating Device XN-PLT
SKU: XN-PLT
Plasma Torch Heating Device XN-PLT provides a stable DC non-transferred plasma jet for high-temperature synthesis and treatment. It offers 0–10 kW adjustable power, 800–8000 °C temperatures, MFC gas control, and PLC/HMI operation.
Need a bulk order or custom specification? Request a competitive quote today!
Name: Plasma Torch Heating Device
Equipment Type: DC Non-Transferred Plasma Torch Heating Device
Product Code: XN-PLT
Brand: Xnergy
Product Introduction:
The XN-PLT uses a water-cooled DC non-transferred plasma torch to generate a stable high-temperature plasma jet. Magnetic-drive arc rotation promotes uniform plasma temperature and repeatable operation, while mass-flow control supports precise gas delivery for materials synthesis, treatment, coating, thermal simulation, waste processing, and analytical research.
The system integrates constant-current or constant-voltage DC power, MFC gas control, closed-loop water cooling, PLC/HMI monitoring, high-speed data acquisition, and multiple safety interlocks.
Key Features:
Adjustable 0–10 kW plasma power
800–8000 °C temperature range
Heating rate of ≥1000 °C per 100 ms
Water-cooled DC non-transferred plasma torch
Argon, nitrogen, helium, or compatible mixed-gas operation
Mass-flow-controller gas regulation
100 Hz to 10 kHz adjustable data acquisition
PLC/HMI process control and fault alarms
Closed-loop water cooling with flow, pressure, and temperature protection
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | XN-PLT |
| Rated Power | 0–10 kW |
| Maximum Operating Current | 100 A; customizable |
| Temperature Range | 800–8000 °C at the arc core |
| Heating Rate | Adjustable to ≥1000 °C per 100 ms |
| Plasma Torch | Water-cooled DC non-transferred type |
| Process Gases | Argon, nitrogen, helium, or compatible mixed gases |
| Gas Connections | Reserved gas piping, valves, and connectors |
| Gas Control | Mass flow controller with digital display and setpoint control |
| Cooling System | Closed-loop water cooling with flow, pressure, and temperature monitoring and protection |
| Power System | DC power supply with constant-current and constant-voltage modes, overcurrent protection, and overvoltage protection |
| Stable DC Output | 100 V / 100 A |
| Control System | PLC and HMI for parameter settings, process monitoring, data recording, and fault alarms |
| Control Modes | Manual and automatic |
| Data Acquisition | Temperature, voltage, and current; adjustable from 100 Hz to 10 kHz |
| Communication | RS485 and analog interface |
| Safety Interlocks | Water-pressure, water-temperature, flow, gas-pressure, power-overload, and emergency-stop protection |
| Equipment Dimensions | 1000 × 500 × 600 mm |
| Gas Velocity | 0.2–2 m/s; adjustable |
| Power Stability | ≤±0.5% in DC mode |
| Continuous Operation | 20–200 h, depending on electrode wear |
| Process Chamber Size | Ø150 × 300 mm |
| Net Weight | 15 kg |
| Power Supply | Configured according to applicable local electrical standards |
| Safety | Overcurrent protection and emergency-stop button |
Applications:
Metal, ceramic, and carbon-based powder preparation
Alloy, oxide, and sulfide nanoparticle synthesis
Plasma spheroidization and surface coating
Aerospace high-temperature environment simulation
Refractory-metal melting and additive-manufacturing research
Hazardous-waste high-temperature treatment
Spectroscopic analysis and trace-element testing
Note: Gas type, torch configuration, chamber size, flow, and process control can be adapted to project requirements. Related equipment includes the Plasma Heating Device XN-PLA, Joule Ultrafast Heating Quenching Device XN-JQT, Pressurized Joule Heating Device XN-PJH, High-Throughput Joule Heating Device XN-HTG, and Flash Joule Heating Device XN-FJH-400V.
