3D Mixer XN-S-LB
SKU: XN-S-LB

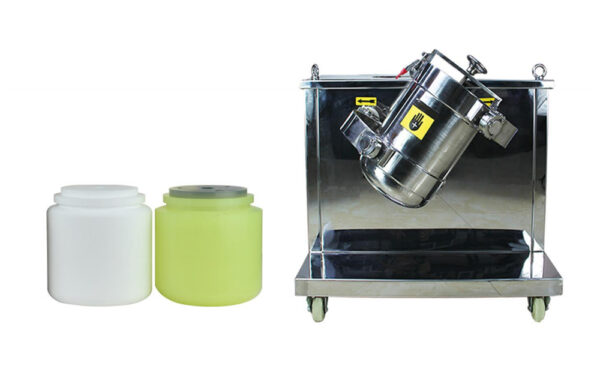

3D Mixer XN-S-LB blends dry powders and granules by moving a removable mixing jar in three dimensions. The multi-directional motion keeps material free from centrifugal force, avoiding gravity segregation and stratification for uniform mixing with a homogeneity rate of up to 98%.
It accepts jars from 500 mL to 20 L, so containers can be swapped between batches and materials and cleaned easily. The unit runs quietly and stably, with forward/reverse rotation via panel control.
Need a bulk order or custom specification? Request a competitive quote today!
Name: 3D Mixer XN-S-LB
Equipment Type: Three-Dimensional (3D) Mixer
Product Code: XN-S-LB
Brand: Xnergy
Product Introduction:
The XN-S-LB 3D Mixer blends dry powders and granules by moving a removable mixing jar in three dimensions. The multi-directional motion keeps the material largely free from centrifugal force, so there is no gravity segregation, stratification, or accumulation, giving uniform mixing with a homogeneity rate of up to 98%. The mixer accepts jars from 500 mL to 20 L, so containers can be swapped to suit different batches and materials and cleaned easily — helping avoid cross-contamination. It has a compact structure, runs quietly and stably, and offers forward and reverse rotation through panel control.
Key Features:
Three-dimensional, multi-directional motion — material stays largely free from centrifugal force, with no gravity segregation, stratification, or accumulation
Suitable for mixing a wide range of materials, with a homogeneity rate up to 98%
Compact structure, simple and quiet operation, stable running
Removable mixing jars from 500 mL to 20 L — easy to swap between batches and materials, and easy to clean
Forward and reverse rotation, adjustable via panel control
Technical Specifications:
| Parameter | Specification |
|---|---|
| Product Code | XN-S-LB |
| Total Volume | 500 mL – 20 L |
| Effective Volume | ≤ 70% |
| Load Capacity Limit | Within 20 kg |
| Spindle Speed | 15 rpm |
| Power | 0.75 kW |
| Voltage | Configurable according to local electrical standards. |
| Weight | 150 kg |
Application Areas:
Uniform, multi-directional dry blending of powders and granules
Flexible small-batch mixing with swappable jars from 500 mL to 20 L
Mixing of active materials, conductive additives, and other powder formulations
Pharmaceutical, chemical, food, and similar powder mixing
Battery R&D — homogeneous blending of cathode and anode powder formulations
Maintenance:
Clean the mixing jars thoroughly after each use, or keep a dedicated jar per material
Inspect the jar clamp, drive, and seals before operation
Confirm the jar is secured and within the rated load before starting
Keep the machine clean and dry when not in use
Safety Notes:
Ensure the jar is securely clamped before starting
Keep clear of the moving cradle while running
Do not exceed the rated load capacity or effective volume
Lock the casters and follow lockout procedures during loading and cleaning
Specifications are provided for reference and may be adjusted to suit specific process requirements. Jar size and configuration are specified at order time.
Note: Specifications listed above are typical and for reference only. Actual performance depends on the material and load. The XN-S-LB 3D Mixer blends dry powders inside a removable jar moved in three dimensions, giving uniform mixing (up to 98% homogeneity) while letting you swap jars between batches and materials to avoid cross-contamination — handy for small, varied batches from 500 mL to 20 L. For larger, fixed-barrel production blending, see the XN-S 3D Mixer (5–1000 L); where a simpler tumbling blend is sufficient, the XN-V V-Type Mixer is an alternative. Powders prepared on mills such as the planetary XN-YXQM Series can be blended here, and in battery R&D it is used to mix Cathode Materials with conductive additives and binders.
